Focal TC 120TDX
 |
Note: By clicking the images you will get a bigger image (not all). |
 |
I use the TC120TDX which uses a ti/tdx dome and has a matte greyish appearance
as is seen in the WITT. This Tweeter differs from both the WATT's and WITT's Tweeter's in that it has an added "Phase-Cone" mounted in front of the inverted Dome. This one however is easily removable and I found that I prefer the sound with these taken off.
|
|
Driver specifications

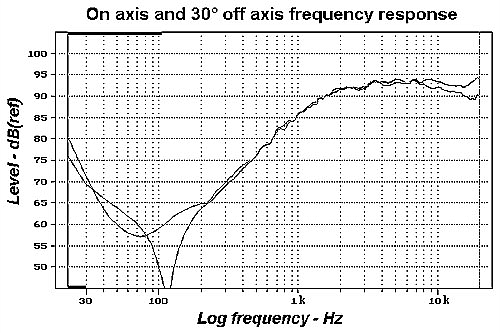

Frequency response

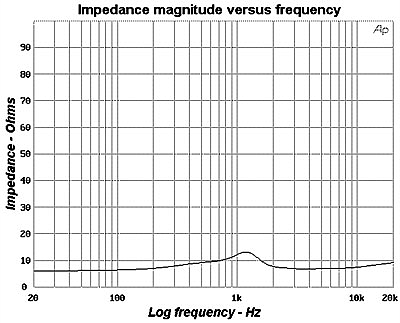

Impedance
 |
|
SPECIFICATIONS
|
|
Nominal power handling
|
15
|
W
|
|
Program power handling
|
150
|
W
|
|
Sensitivity
|
93.5
|
dB (2.8V/1m)
|
|
Cone
|
Tioxid
|
-
|
|
Surround
|
Coated
Foam
|
-
|
|
Nominal impedance
|
8
|
Ohms
|
|
DC resistance
|
6
|
Ohms
|
|
VC diameter
|
20
|
mm
|
|
VC height
|
2.2
|
mm
|
|
Former
|
Aluminium
|
-
|
|
Layers
|
2
|
-
|
|
Wire
|
Copper
|
-
|
|
Inductance
|
0.08
|
mH
|
|
Xmax
|
-
|
mm
|
|
Magnet diameter x height
|
85 x
15
|
mm x mm
|
|
Magnet weight
|
361
|
g
|
|
Flux density
|
-
|
T
|
|
Gap height
|
3
|
mm
|
|
Net weight
|
1.2
|
Kg
|
|
�
|
PARAMETERS
|
|
Fs
|
1181
|
Hz
|
|
Vas
|
-
|
I
|
|
Qts
|
0.86
|
-
|
|
Qes
|
1.42
|
-
|
|
Qms
|
2.16
|
-
|
|
Re
|
5.7
|
Ohms
|
|
Sd
|
-
|
cm2
|
|
Cas
|
-
|
m5/N
|
|
Mas
|
-
|
Kg/m4
|
|
Ras
|
-
|
Ohms.ac
|
|
Cms
|
-
|
m/N
|
|
Mms
|
-
|
g
|
|
Rms
|
-
|
g/s
|
|
Ces
|
-
|
�F
|
|
Les
|
-
|
mH
|
|
Res
|
8.6
|
Ohms
|
|
BI
|
-
|
N/A
|
|
SPL
|
-
|
dB/W/m
|
|
|
|
 |
